SITRANS MAG - Food / Industrial

SITRANS MAG - Food / Industrial

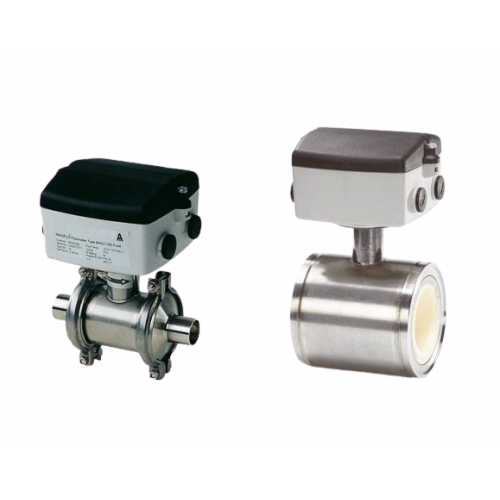

SITRANS FM MAG1100 / MAG3100

For a range of food & beverage / industrial needs, the SITRANS FM MAG series from Siemens covers all bases.

  • The SITRANS FM MAG 1100 is a sensor in stainless steel with highly resistant liners and electrodes which fit even the most extreme process media.
  • The SITRANS FM MAG 1100 F sensor is especially designed for the food & beverage and pharmaceutical industries and is available with hygienic and flexible process connections.
  • The SITRANS FM MAG 3100 is an electromagnetic flow sensor with a large variety of liners, electrode material and with grounding electrodes as standard, all this ensures a perfect fit for almost every flow application.
  • The SITRANS FM MAG 3100 P sensor is designed to meet the most common specifications within the chemical and process industries.

Flow enquiry form

Benefits

  • Compact wafer design meets EN 1092, DIN and ANSI flange standards
  • Flexible and unique process connections
  •  Standard liner options that fully cover the food and beverage applications
  • Versatile – Highly resistant lining and electrode materials for use with the most extreme process media
  • Fully welded construction that is extremely rugged and can withstand special process conditions using extreme measurement electrodes
  • Integrated grounding electrodes – no grounding rings required for many applications
  • High temperature version available up to 390 °F
  • Sanitary design for CIP/SIP cleaning
  • SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for both MAG 3100/1100):
    Unique SensorProm technology – stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
  • Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just minutes
  •  “Hot swapable” – exchangeable during operations
  • Mounting flexibility – compact or separate installation possible
  • Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
  • Service and diagnostics – Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy

Details

 Measuring range 0 to 10 m/s
Nominal Sizes From DN 15 to DN 2000 (½” to 78″)
Accuracy 0.2 % ±1 mm/s

0.4 % ± 1 mm/s (PFA)

Operating Pressure Max. 100 bar (Max. 1450 psi)
Ambient temperature From -40 to 100 °C (-40 to 212 °F)
Medium temperature From -40 to 180 °C (-40 to 356 °F)
Liners PFA, PTFE (Teflon)

Ceramics, PFA

Neoprene, EPDM, PTFE, PFA, Ebonite, Linatex

Electrodes Hastelloy C22, Hastelloy C276

AISI 316 Ti (1.4571), Platinum/iridium, Titanium, Tantalum

Material Carbon steel with corrosion resistant two component epoxy coating

Stainless steel AISI 316L (1.4404)

General approval E.g.: ATEX, FM, CSA, CT and Drinking Water approvals, EHEDG, 3A

If you need more information in choosing the right SITRANS FM MAG Flow Meter for your application, fill out the form below, send an email to our Process Instrumentation team, or call us on 01914780404.
